Puissance compacte, force de pression élevée : TPM 161

Vitesse et prĂ©cision, mĂȘme pour des marquages assez grands

TPM 161

High-performance pad printing machine
for integration into systems

Your advantage:

  • electromechanical, servo drive control
  • cycle times of up to 2’800 cycles per hour
  • perfectly suitable for integration into systems
  • sealed inkwell system
  • 1 colour
  • increase of process reliability by options such as clichĂ© plate cooling or temperature compensation
  • ink cup sizes of up to Ø 180 mm

The TPM 161 electromechanical pad printing machine was created for integration into systems. Equipped with a modern PLC controller and an external control panel with a colour touchscreen display, the TPM 161 will satisfy the most demanding applications.

As an option, the TPM 161 can be controlled via a bus system. With a printing force of almost 4000 N and a printing capacity of 2’800 pieces per hour, the TPM 161 pad printing machine underlines its ability to perform within integrated print system settings. A pad cleaning device with a tape width of 100 and 150 mm, as well as the TI 300 thinner injection unit are available as options..

Tampondruckmaschine TPM 161

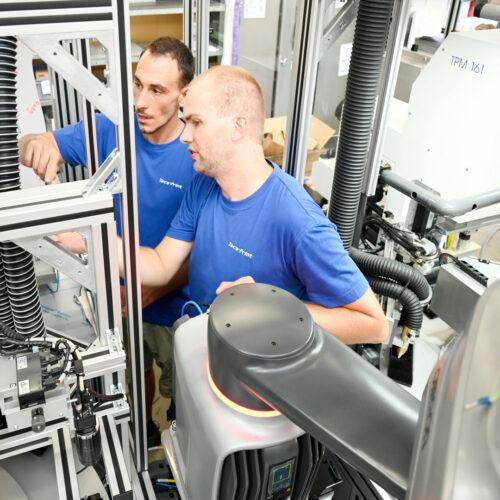

Teca-Print Mitarbeiter Dienstleistung bei Montage Tampondruckanlage

Our employees assemble a pad printing system comprising several TPM 161s.

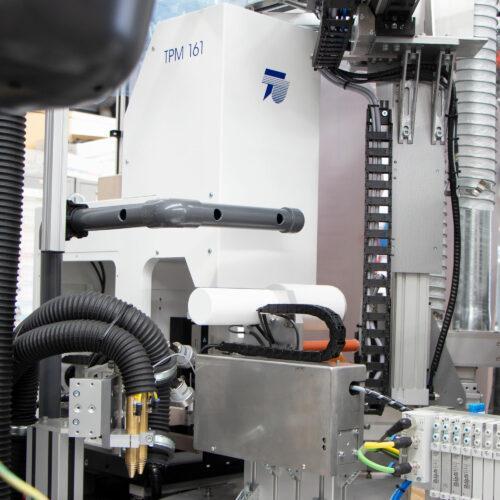

Tampondruckmaschine TPM 161, Integration in Anlage

The TPM 161 is ideal for integration into systems.

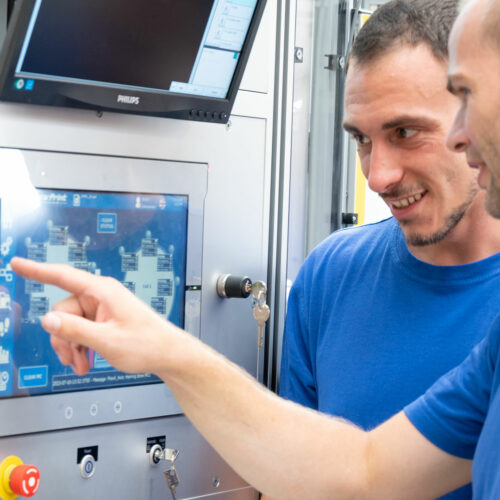

Teca-Print Produktion und Service: Mitarbeiter an Steuerungspanel

The control panel of a complex system is designed to be user-friendly with many drawings.

Technical data TPM 161

Number of colours:
1 colour

Ink cup sizes:
Ø 72 mm, Ø 96 mm, Ø 130 mm, Ø 160 m, Ø 180* mm
*overlapping ink cup

Plate sizes:
100 x 220 mm to max. 190 x 350 mm

up to 2’800 cycles per hour

Drive system:
electromechanical – 3 axis control with 3 servo motors, infinitely adjustable parameters

Printing force:
4000 N (printing force must be balanced)

Mains connection:
230 V / 50 Hz, (5 – 6 bar air pressure required for some pneumatic accessories)

PLC – HMI touchscreen, option of interface connection via data bus system possible

Vertical pad stroke:
electromechanical, 160 mm infinitely adjustable

Cliché plate adjustment:
± 2° (rotation)

approx. 127 kg without base

Dimenstions (WxHxD):
300 x 855 x 852 mm

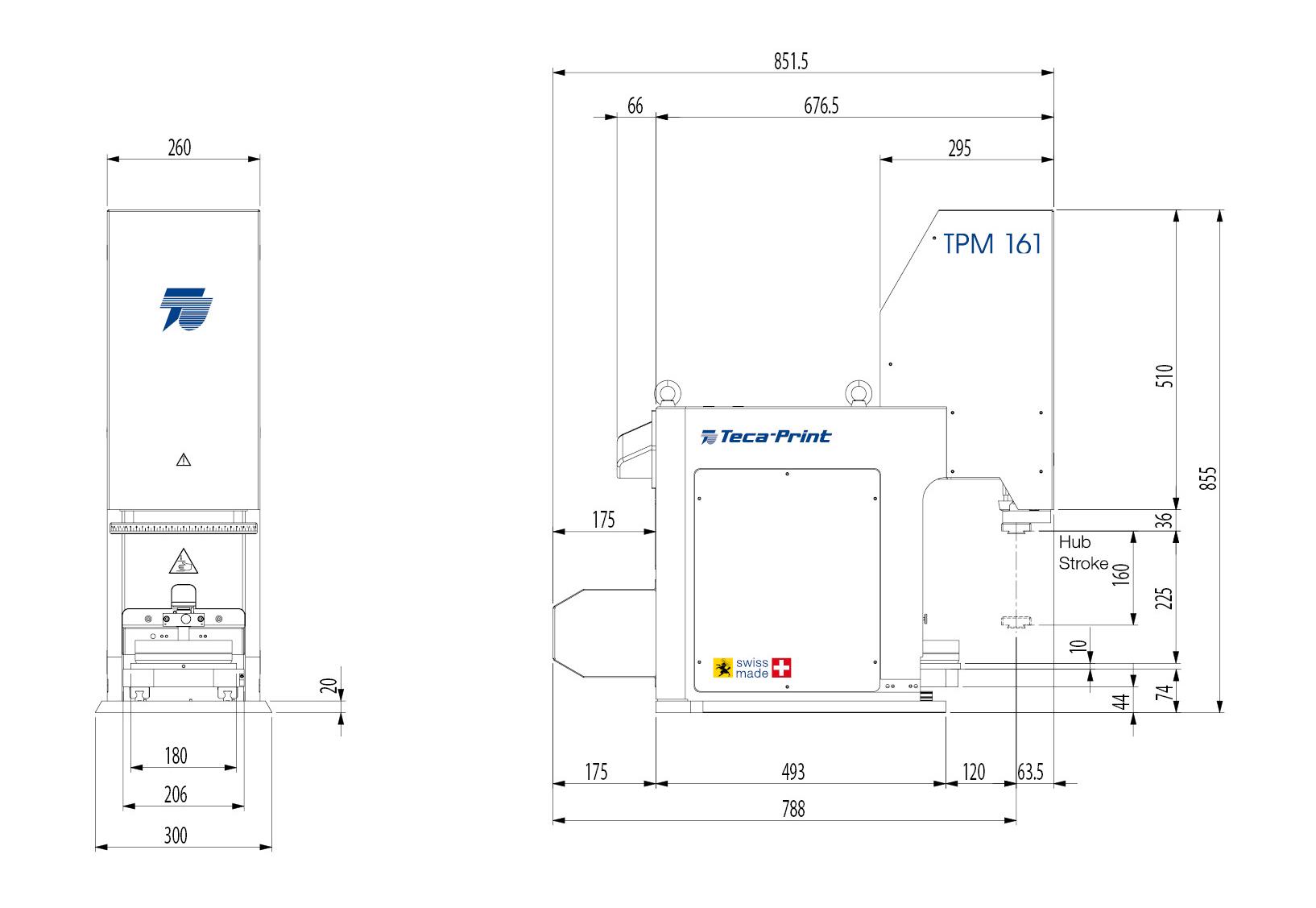

Tampondruckmaschine TPM 161 Masszeichnung

The TPM 161 – perfect in systems: maximum precision and speed
