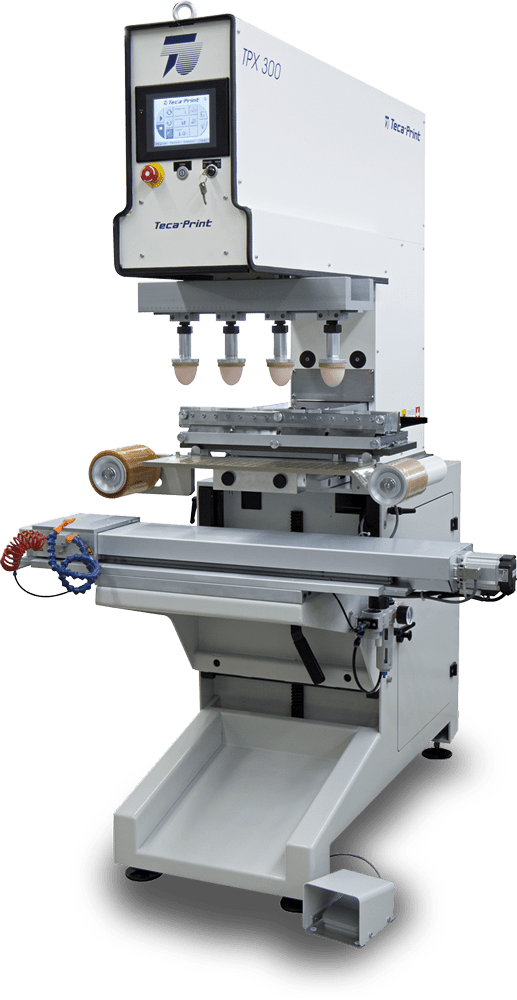

TPX 300

Pad printing machine with open ink supply system

Your advantage:

  • up to 5 colors
  • clichĂ© widths up to 450 mm
  • up to 1.600 cycles/h
  • printing force 4000 N
  • intuitive, modular PLC control via touch screen
  • vertical stroke 160 mm, infinitely programmable



The TPX 300 is driven by three precision servo motors and enables a highly flexible printing process. Clear, user-friendly operator guidance is provided by the intuitive, modular software with color touchscreen control.

By means of the cliché holders adjustable in x- and w-axis and the horizontally as well as vertically infinitely adjustable pad position, the TPX 300 has complete adjustment possibilities in all directions without the need for further shifting units.

Other features of the TPX 300 include a large throat depth, a high printing force and very good printing accuracy.

Pad cleaning is available integrated and enables maximum utilization of the cleaning belt by means of cleaning offset.

Technical data TPX 300

Number of colors: up to 5 colors

Cliché sizes: standard cliché widths in mm: 250 / 350 / 450, standard cliché depths in mm: 100 / 120

Number of cycles: up to 1’600 cycles per hour

Drive: electromechanical, (3-axis control with 3 servo motors), infinitely adjustable working elements

Pressure force: 4000 N with centric load

Connected load: 230 V / 50 Hz, compressed air 5 – 6 bar

Air consumption: 0.04 liters per cycle at 6 bar

Control: modular SPS control, touch screen

Pad vertical stroke: electromechanical, 160 mm continuously programmable

Cliché adjustment: ± 5 mm (x-axis), ± 2° (w-axis)

Weight: approx. 245 kg without base, approx. 410 kg with MS 352 base

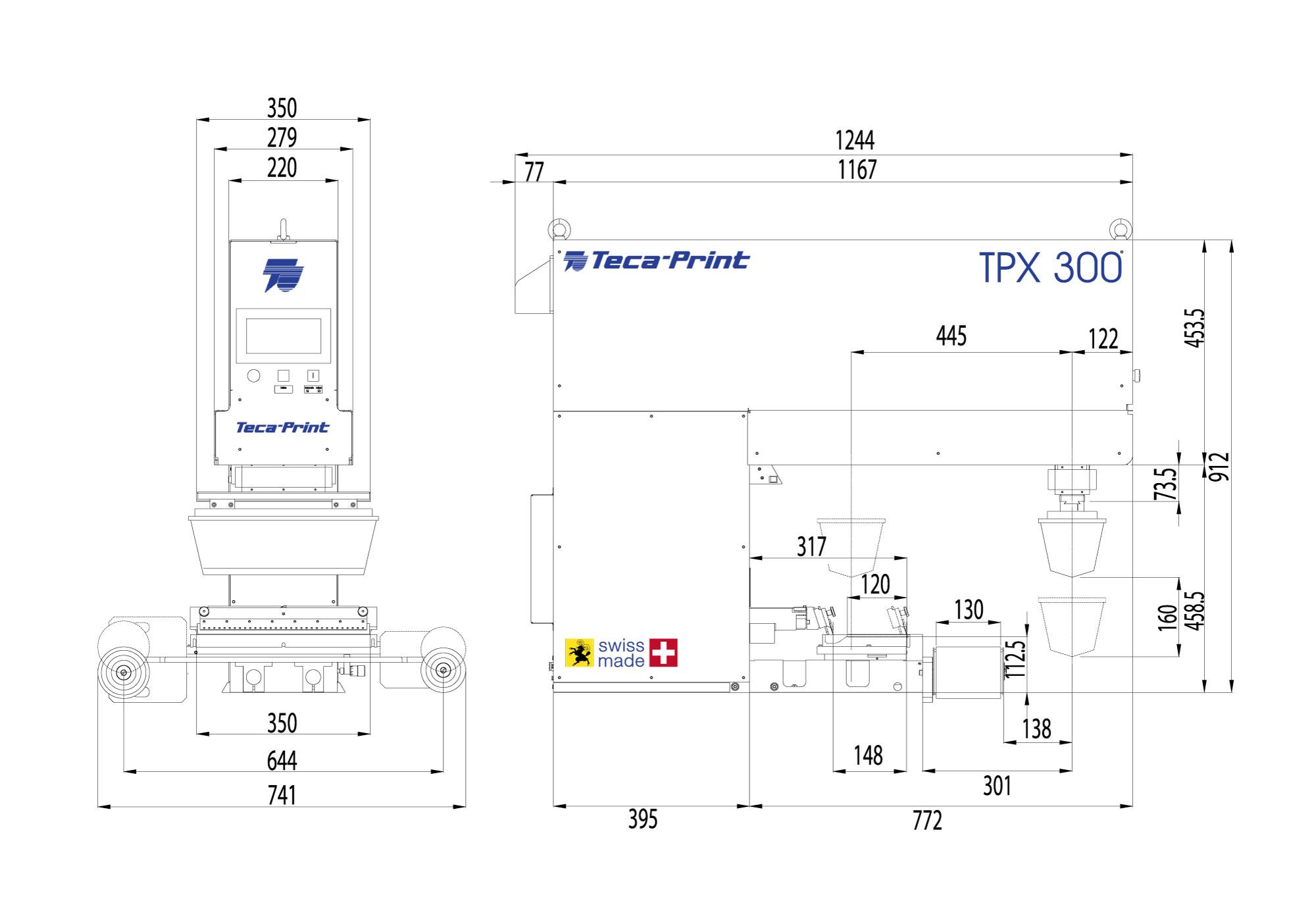

Dimensions (WHT): 740 x 955 x 1244 mm, (data without base)

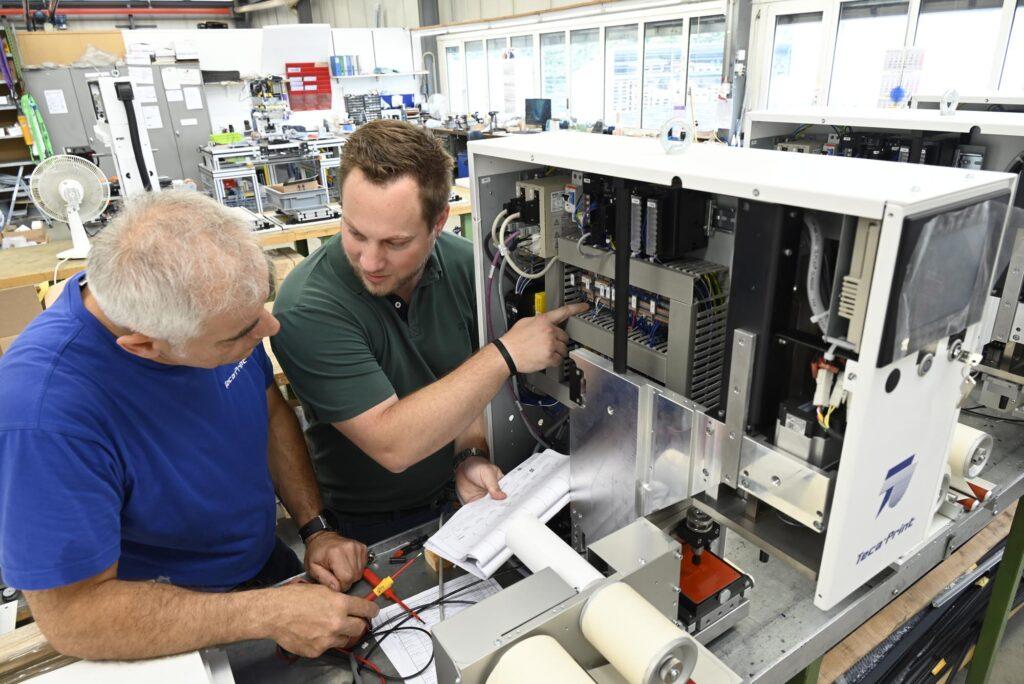

It is important to us in our work that we not only meet customer expectations, but exceed them!

Die TPX Serie in Aktion

We want to offer the customer a complete solution – everything from a single source!

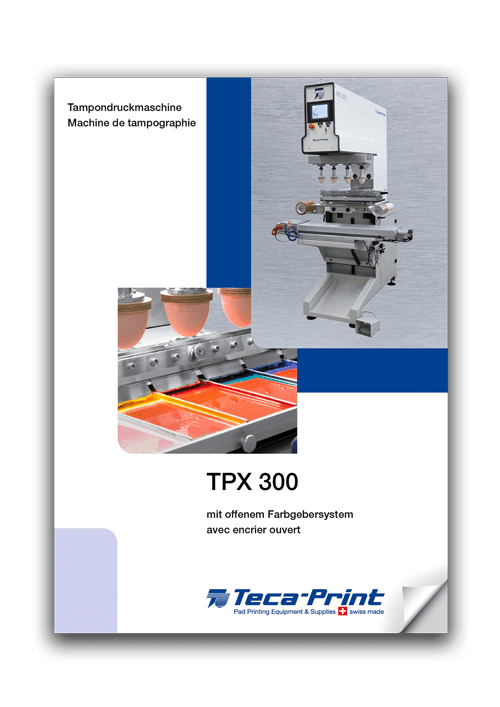

Your Teca-Print TPX 300 brochure as PDF!
